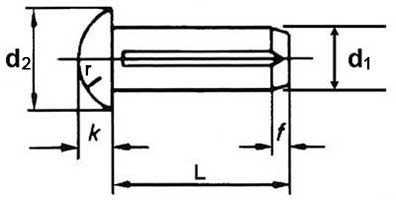

Dimensions for Round Head Grooved Pins

d1	Tolerance	d2	k	f	r
1.4	0/0.05	2.5	0.8	0.5	1.4
1.6	0/0.05	2.8	1	0.5	1.6
1.7	0/0.05	3	1	0.5	1.6
2	0/0.05	3.5	1.2	0.5	1.9
2.3	-	4	1.4	-	2.2
2.5	-	4.4	1.5	0.7	2.4
2.6	0/-0.075	4.5	1.6	-	2.4
3	0/-0.075	5.2	1.8	1.8	2.8
4	0/-0.1	7	2.4	2.4	3.8
5	0/-0.1	8.8	3	3	4.6
6	0/-0.1	10.5	3.6	-	5.7
