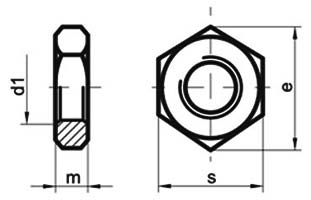

DIN 439 Dimension for Hex Jam Nut
| d1 |
s |
m max |
e min |
| M1.6 |
3.2 |
1 |
3.48 |
| M1.7 |
3.2 |
1 |
3.48 |
| M2 |
4 |
1.2 |
4.32 |
| M2.3 |
4.5 |
1.2 |
5.20 |
| M2.5 |
5 |
1.6 |
5.45 |
| M2.6 |
5.5 |
1.8 |
6.01 |
| M3 |
5.5 |
1.8 |
3.01 |
| M3.5 |
6 |
2 |
6.58 |
| M4 |
7 |
2.2 |
7.66 |
| M5 |
8 |
2.7 |
8.79 |
| M6 |
10 |
3.2 |
11.05 |
| M8 |
13 |
4 |
14.38 |
| M10 |
16 |
5 |
17.77 |
| M12 |
18 |
6 |
20.03 |
| M14 |
21 |
7 |
23.35 |
| M16 |
24 |
8 |
26.75 |
| M18 |
27 |
9 |
29.56 |
| M20 |
30 |
10 |
32.95 |
| M22 |
34 |
11 |
37.29 |
| M24 |
36 |
12 |
39.55 |
| M27 |
41 |
13.5 |
45.20 |
| M30 |
46 |
15 |
50.85 |
| M33 |
50 |
16.5 |
55.37 |
| M36 |
55 |
18 |
60.79 |
| M39 |
60 |
19.5 |
66.44 |
| M42 |
65 |
21 |
71.30 |
| M45 |
70 |
22.5 |
76.95 |
| M48 |
75 |
24 |
82.60 |
| M52 |
80 |
26 |
88.25 |
| M56 |
85 |
28 |
93.56 |
| M60 |
90 |
30 |
99.21 |
| M64 |
95 |
32 |
104.86 |
