Equivalent Standards

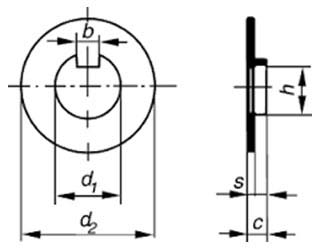

DIN 462 Dimensions for Tab Washer

d1	d2	s	b	h	c
M8	20	0.8	3	5.9	2.5
M10	25	0.8	4	7.4	3
M12	28	0.8	5	9.3	3
M14	39	0.8	5	11.4	3
M16	32	1	5	13.5	3
M18	34	1	6	15.4	4
M20	36	1	6	17.5	4
M22	40	1	6	19.5	4
M24	42	1	6	21.6	4
M26	45	1	7	23.5	5
M28	50	1	7	25.5	5
M30	50	1.2	7	27.5	5
M32	52	1.2	7	29.6	5
M35	55	1.2	7	32.6	5
M38	58	1.2	8	35.3	5
M40	62	1.2	8	37.3	5
M42	62	1.2	8	39.3	5
M45	68	1.2	8	42.4	5
M48	75	1.2	8	45.4	5
M50	75	1.2	8	47.4	5
M52	80	1.2	10	49.3	6
M55	80	1.2	10	52.9	6
M58	90	1.5	10	55.3	6
M60	90	1.5	10	57.3	6
M62	95	1.5	10	59.3	6
M65	95	1.5	10	62.4	6
M68	100	1.5	10	65.4	6
M70	100	1.5	10	67.4	6
M72	110	1.5	10	68.9	7
M75	110	1.5	10	71.9	7
M80	115	1.5	10	76.9	7
M85	120	1.5	10	81.9	7
M90	130	1.5	10	86.9	7
