DIN 6797 : Toothed Washers
Equivalent Standards

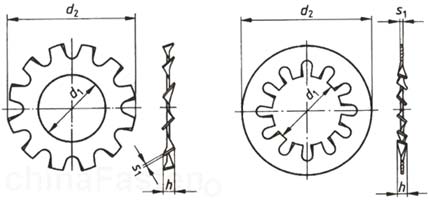

Dimensions for Toothed Washers
| For Screw | d1 min | d2 max | s |
|---|---|---|---|
| M 2 | 2.2 | 4.5 | 0.3 |
| M 2.5 | 2.7 | 5.5 | 0.4 |
| M 3 | 3.2 | 6 | 0.4 |
| M 4 | 4.3 | 8 | 0.5 |
| M 5 | 5.3 | 10 | 0.6 |
| M 6 | 6.4 | 11 | 0.7 |
| M 8 | 8.4 | 15 | 0.8 |
| M 10 | 10.5 | 18 | 0.9 |
| M 12 | 13 | 20.5 | 1 |
| M 14 | 15 | 24 | 1 |
| M 16 | 17 | 26 | 1.2 |
| M 20 | 21 | 33 | 1.4 |
| M 24 | 25 | 38 | 1.5 |
