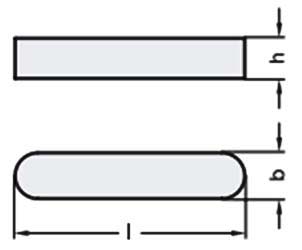

Dimensions for Paralled Keys

b h9	h	length l														for shaft Ø
																From	To
3	3	6	8	10	12	14	16	18	20	-	-	-	-	-	-	8	10
4	4	10	12	14	16	18	20	22	25	28	32	-	-	-	-	10	12
5	5	10	12	14	16	18	20	22	25	28	32	36	40	45	50	12	17
6	6	14	16	18	20	22	25	28	32	36	40	45	50	56	63	17	22
8	7	16	18	20	22	24	25	28	32	36	40	45	50	56	63	22	30
10	8	20	22	25	28	32	36	40	45	50	56	63	70	80	90	30	38
12	8	25	28	32	36	40	45	50	56	63	70	80	90	100	-	38	44
