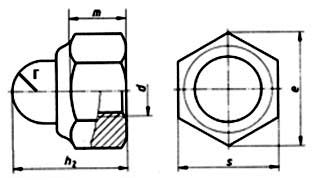

Dimensions for Prevailing Torque Hexagon Domed Nuts with Non Metallic Insert

d mm	s	e min	m	h1	h2	r
M 4	7	7.74	3.2	5.6	9.6	2.5
M 5	8	8.87	4	6	10.5	3
M 6	10	11.05	5	7.5	12	3.5
M 8	13	14.38	6.4	8.9	14	4.6
M 10	17	18.9	7.8	10.5	18.1	5.8
M 12	19	21.1	9.6	13.5	22.5	6.8
M 16	24	26.75	12.5	16.5	27.5	8.8
