Equivalent Standards

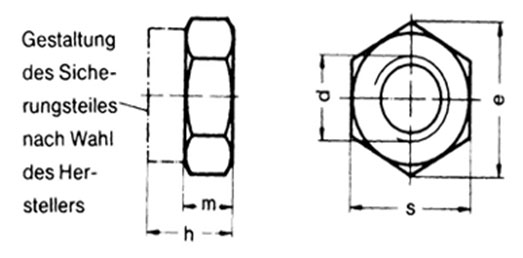

Dimensions of Prevailing Torque Type Hexagon Thin Nuts with Non Metallic Insert

Dimensions	h max	m min	s
M 3	3.7	1.65	5.5
M 4	4.2	2.2	7
M 5	5.1	2.75	8
M 6	6	3.3	10
M 8	8	4.4	13
M 10	10	5.5	17
M 12	12	6.6	19
M 14	14	7.7	22
M 16	16	8.8	24
M 18	18	9.9	27
M 20	20	11	30
M 22	22	12.2	32
M 24	24	13.2	36
M 27	27	14.8	41
M 30	30	16.5	46
M 33	33	18.2	50
M 36	36	19.8	55
M 39	39	21.5	60
