ISO 1207 : Metric Slotted Cheese Head Screws
Equivalent Standards
- ISO 1207
- DIN 84
- UNI 6107
- PN 82215
- CSN 21131

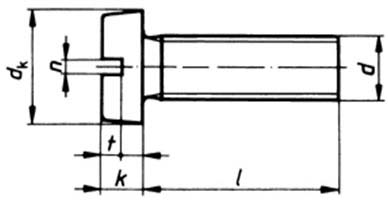

Dimensions of Metric Slotted Cheese Head Screws
| d | k | d2 | t | t max | n |
|---|---|---|---|---|---|
| M2 | 1.4 | 3.8 | 0.6 | 0.8 | 0.5 |
| M2.5 | 1.8 | 4.5 | 0.7 | 0.9 | 0.6 |
| M3 | 2 | 5.5 | 0.9 | 1.15 | 0.8 |
| M4 | 2.6 | 7 | 1.2 | 1.5 | 1 |
| M5 | 3.3 | 8.5 | 1.5 | 1.8 | 1.2 |
| M6 | 3.9 | 10 | 1.8 | 2.2 | 1.6 |
| M8 | 5 | 13 | 2.1 | 2.6 | 2 |
| M10 | 6 | 16 | 2.4 | 3 | 2.5 |
| M12 | 6 | 22 | 2.4 | 3 | 3 |
