ISO 2010 : Slotted Raised Countersunk Oval Head Screws
Equivalent Standards
- ISO 2010
- DIN 964
- PN 82211
- UNI 6110
- CSN 21155

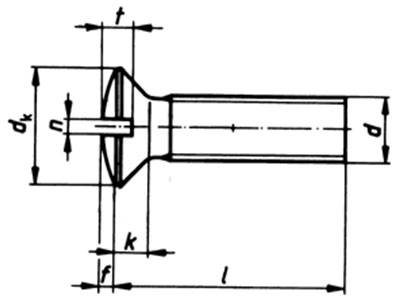

Dimensions of Slotted Raised Countersunk Oval Head Screws
| d | k max. | f | t max. | n | dk |
|---|---|---|---|---|---|
| M 2 | 1.2 | 0.5 | 1.0 | 0.5 | 3.8 |
| M 2.5 | 1.5 | 0.6 | 1.2 | 0.6 | 4.7 |
| M 3 | 1.65 | 0.75 | 1.45 | 0.8 | 5.5 |
| M 4 | 2.7 | 1 | 1.9 | 1 | 8.4 |
| M 5 | 2.7 | 1.25 | 2.3 | 1.2 | 9.3 |
| M 6 | 3.3 | 1.5 | 2.8 | 1.6 | 11.3 |
| M 8 | 4.65 | 2 | 3.7 | 2 | 15.8 |
| M 10 | 5 | 2.5 | 4.6 | 2.5 | 18.3 |
