Equivalent Standards

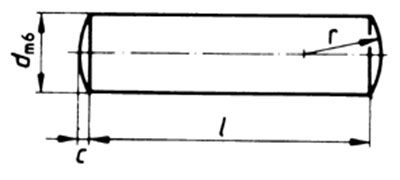

Dimensions of Dowel Pins

d m6	r	c max	Tol. M6 (l = 2-10mm)	Tol. M6 (l = 12-32mm)
0.8	0.8	0.12
1	1	0.15	+0.3	+0.5
1.2	1.2	0.18	+0.3	+0.5
1.5	1.6	0.23	+0.3	+0.5
2	2	0.3	+0.3	+0.5
2.5	2.5	0.4	+0.3	+0.5
3	3	0.45	+0.3	+0.5
4	4	0.6	+0.3	+0.5
5	5	0.75	+0.3	+0.5
6	6	0.9	+0.3	+0.5
8	8	1.2	+0.3	+0.5
10	10	1.5	+0.3	+0.5
12	12	1.8	+0.3	+0.5
14	14	2	+0.3	+0.5
16	16	2.5	+0.3	+0.5
20	20	3.0	+0.3	+0.5
25	25	4	+0.3	+0.5
30	32	4.5	+0.3	+0.5
