Equivalent Standards

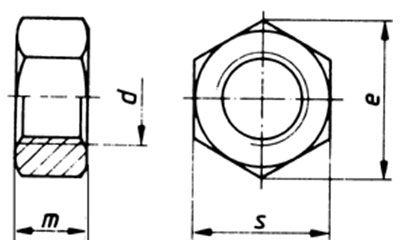

Dimensions of Hexagon Nut

Dimensions	m	s
M 1	0.8	2.5
M 1.2	1	3
M 1.4	1.2	3
M 1.6	1.3	3.2
M 1.7	1.4	3.5
M 2	1.6	4
M 2.3	1.8	4.5
M 2.5	2	5
M 2.6	2	5
M 3	2.4	5.5
M 3.5	2.8	6
M 4	3.2	7
M 5	4.7	8
M 6	5.2	10
M 7	5.5	11
M 8	6.8	13
M 10	8.4	16
M 12	10.8	18
M 14	12.8	21
M 16	14.8	24
M 18	15.8	27
M 20	18	30
M 22	19.4	34
M 24	21.5	36
M 26	22	41
M 27	23.8	41
M 30	25.6	46
M 33	28.7	50
M 36	31	55
M 39	33.4	60
M 42	34	65
M 45	36	70
M 48	38	75
M 52	42	80
M 56	45	85
M 60	48	90
M 64	51	95
M 68	54	100
M 72	58	105
M 76	61	110
M 80	64	115
M 85	68	120
M 90	72	130
M 95	75	135
M 100	80	145
M 105	82	150
M 110	88	155
M 120	95	175
