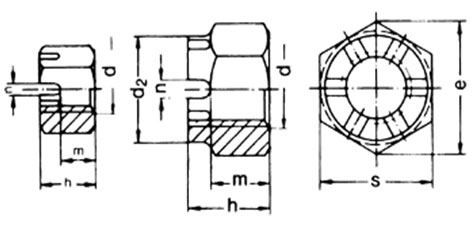

Dimensions of Hexagon Slotted Castle Nuts, High Type

Dimensions	de max	m	n min	DIN	w max	cotter
M 8	-	9.5	2.5	13	6.5	2 x 16
M 10	-	12	2.8	17	8	2.5 x 20
M 12	16	15	3.5	19	10	3.2 x 22
M 14	18	16	3.5	22	11	3.2 x 25
M 16	22	19	4.5	24	13	4 x 28
M 18	25	21	4.5	27	15	4 x 32
M 20	28	22	4.5	30	16	4 x 36
M 22	32	26	5.5	32	18	5 x 36
M 24	34	27	5.5	36	19	5 x 40
M 26	38	30	5.5	41	22	5 x 50
M 27	38	30	5.5	41	22	5 x 45
M 28	38	30	5.5	41	22	5 x 50
M 30	42	33	7	46	24	6.3 x 50
M 32	46	35	7	50	26	6.3 x 56
M 33	46	35	7	50	26	6.3 x 56
M 36	50	38	7	55	29	6.3 x 63
M 39	55	40	7	60	31	6.3 x 71
M 42	58	46	9	65	34	8 x 71
M 45	62	48	9	70	36	8 x 80
M 48	65	50	9	75	38	8 x 80
M 50	65	50	9	75	38	8 x 80
M 52	70	54	9	80	42	8 x 90
M 56	75	57	9	85	45	8 x 100
M 58	80	65	11	90	48	10 x 100
M 60	80	63	11	90	48	10 x 100
M 64	85	66	11	95	51	10 x 100
M 68	90	69	11	100	54	10 x 112
M 72	95	73	11	105	58	10 x 112
M 76	100	76	11	110	61	10 x 125
M 80	105	79	11	115	64	10 x 140
