ISO 8734 Dowel Pin, Hardened, Tolerance M6
Equivalent Standards
- ISO 8734
- DIN 6325
- PN
- UNI 6364A
- CSN 22152
- CSN EN
- BN

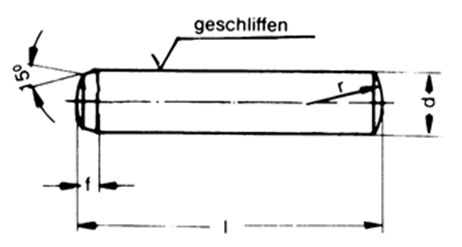

Dimensions of Dowel Pin, Hardened, Tolerance M6
| d m6 | l2 | r | z1 | z2 |
|---|---|---|---|---|
| 1 | 0.4 | 1 | 0.15 | 0.08 |
| 1.5 | 0.5 | 1.5 | 0.23 | 0.12 |
| 2 | 0.6 | 2 | 0.3 | 0.18 |
| 2.5 | 0.7 | 2.5 | 0.4 | 0.25 |
| 3 | 0.8 | 3 | 0.45 | 0.3 |
| 4 | 1 | 4 | 0.6 | 0.4 |
| 5 | 1.2 | 5 | 0.75 | 0.5 |
| 6 | 1.5 | 6 | 0.9 | 0.6 |
| 8 | 1.8 | 8 | 1.2 | 0.8 |
| 10 | 2 | 10 | 1.5 | 1 |
| 12 | 2.5 | 12 | 1.8 | 1.3 |
| 14 | 2.5 | 16 | 2 | 1.3 |
| 16 | 3 | 16 | 2.5 | 1.7 |
| 20 | 4 | 20 | 3 | 2 |
