ISO 8738 Flat Washers for Clevis Pins
Equivalent Standards
- ISO 8738
- DIN 1440
- PN 82004
- UNI
- CSN 21706
- CSN EN 28738
- BN

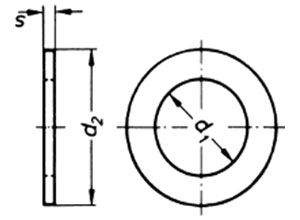

Dimensions of Flat Washers for Clevis Pins
| d (H11) | for bolts | s | d2 mm |
|---|---|---|---|
| 3 | 3 | 0.8 | 6 |
| 4 | 4 | 0.8 | 8 |
| 5 | 5 | 0.8 | 10 |
| 6 | 6 | 1.6 | 12 |
| 7 | 7 | 1.6 | 14 |
| 8 | 8 | 2 | 15 |
| 10 | 10 | 2.5 | 18 |
| 12 | 12 | 3 | 20 |
| 14 | 14 | 3 | 22 |
| 16 | 16 | 3 | 24 |
| 18 | 18 | 4 | 28 |
| 20 | 20 | 4 | 30 |
| 22 | 22 | 4 | 34 |
| 25 | 25 | 4 | 40 |
| 26 | 26 | 5 | 40 |
| 28 | 28 | 5 | 42 |
| 30 | 30 | 5 | 44 |
| 32 | 32 | 5 | 46 |
| 35 | 35 | 6 | 49 |
| 40 | 40 | 6 | 56 |
| 45 | 45 | 7 | 62 |
| 50 | 50 | 8 | 68 |
